Aisle-Bound Storage Retrieval Machines: the MONO Series

Optimum Design for Excellent Aisle Utilisation

The aisle-bound MONO series has proved a favourite with customers because of its optimum use of space. Minimum approach dimensions at the end of the aisle and at the top and bottom of the travel plus no-buffers end-of-aisle protection permit full exploitation of the storage space. And then there’s the speed factor as well: good travelling speed and acceleration figures ensure efficient storage and retrieval, also during peak times.

Depending on requirements, our MONO storage retrieval machines (SRMs) can be fitted with one, two or three drives. Where very high maneuverability is required, DAMBACH also makes use of an interlocking drive concept with a toothed rack. That results in throughput rates that are otherwise only seen in automated small parts warehouses. Another benefit of the toothed rack drive is the low load on the running wheels and the rails.

The large range of load handling attachments, which we develop and produce ourselves to suit your loads, turns any rail-guided SRM into a true all-rounder ideal for virtually any branch of industry, whether for paper storage or cold stores. Only when the interfaces between storage retrieval machines, load handling equipment, and load carriers are perfectly matched is it possible to operate an automated high bay warehouse reliably and economically.

Here, too, the modular construction enables good flexibility and easy adaptation to meet customer requirements. All modules can be combined to suit the specification, which enables graduated, application-based configurations for all products. Upgrades for better performance or retrofitting in existing warehouses are therefore no problem.

read more read less

Smooth Efficiency

The drive unit heads are adjustable and thus permit infinite correction of the mast angle. Load cycle deformations can therefore be compensated for safely and effectively, which guarantees outstanding precision even after many operating hours. The low-vibration, rigid mast design minimises the damping times between individual movements. Even long-reach models thus achieve high speeds and good acceleration.

  • Aisle-bound design saves space and guarantees high speeds

  • No-buffers end-of-aisle protection

  • Minimum approach dimensions at the top and bottom of the travel

  • Variable drive concepts

  • Good speed and acceleration

  • High throughput rates

  • High availability

  • Best use of available space

  • Modular system

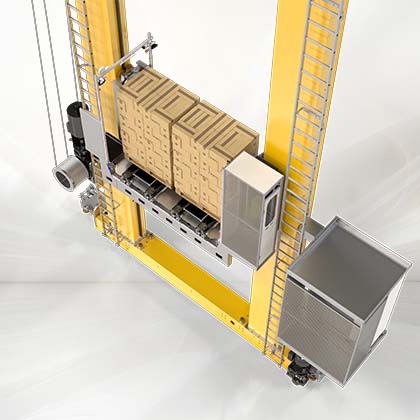

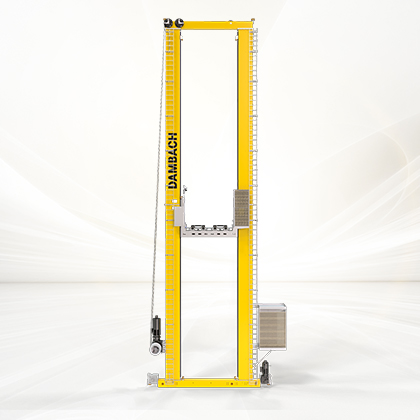

  • Single- or twin-mast versions

  • Overall heights of up to 49 m

  • Lifting capacities of up to 6,000 kg

  • Load-handling equipment by DAMBACH

  • Cold store compatibility down to –30°C

read more read less

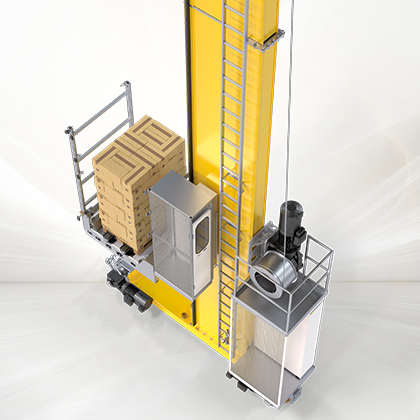

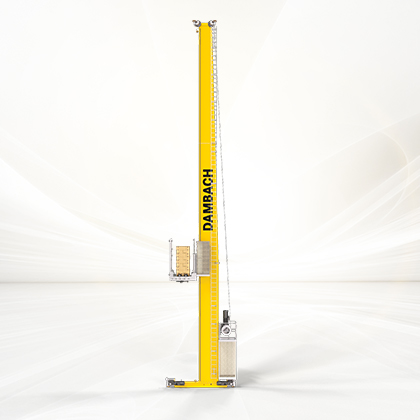

Gallery

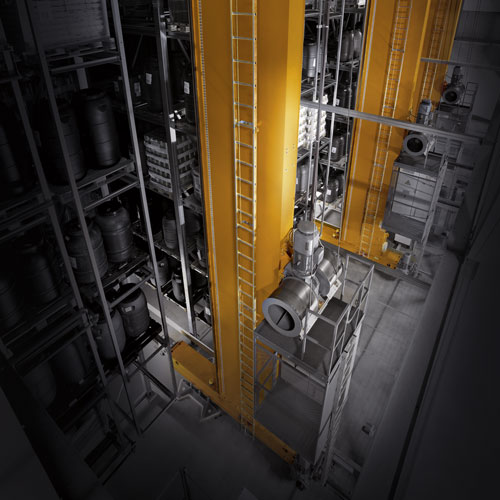

Product Video
