Nodes – Materials Handling Systems

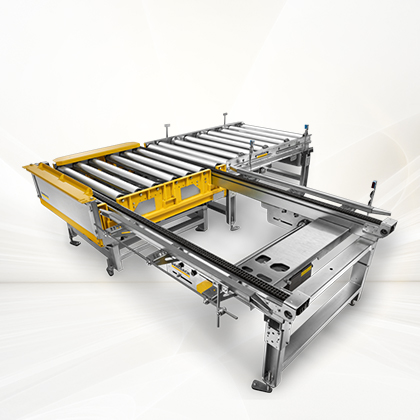

Lift Table

with Roller or Chain Conveyor

DAMBACH lift tables are efficient transfer units for mergers, crossings or branches in flows of materials. Roller or chain conveyors can be integrated as required. The interlocking lift mechanism combined with a rigid frame protects the unit loads and ensures optimum availability. As an option, variable intermediate lift positions can be included to ensure greater flexibility. The compact dimensions and safety guards expand the range of applications.


with Roller or Chain Conveyor

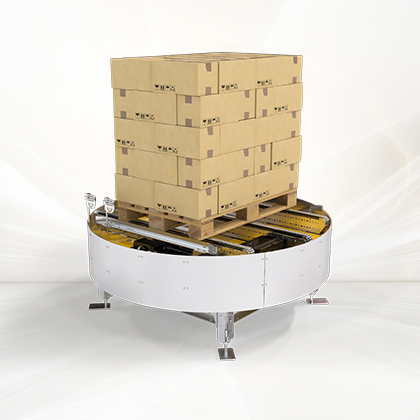

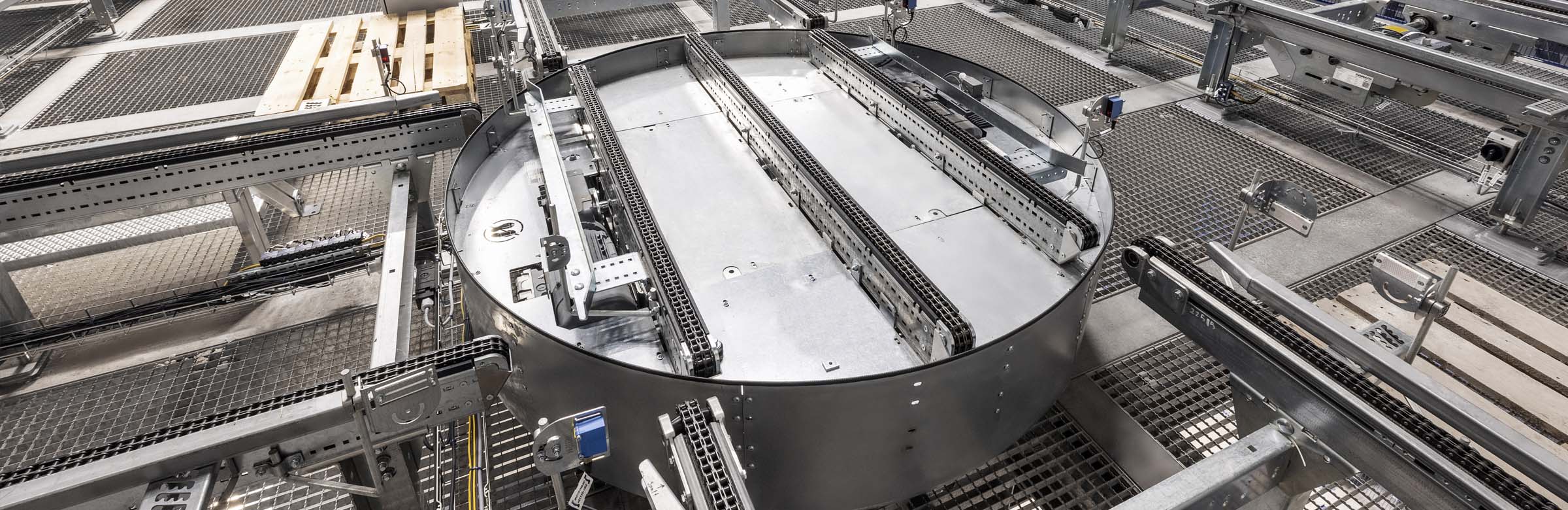

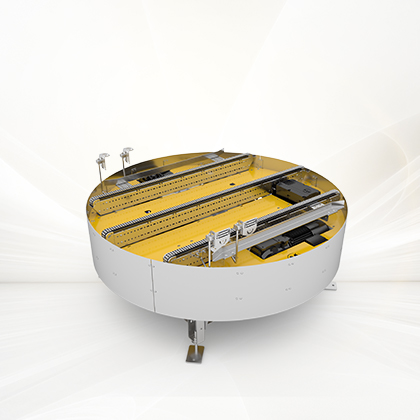

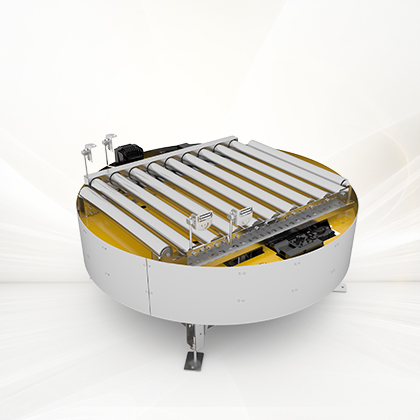

Turntables can divide or merge flows of materials without changing the orientation of the unit loads. The highly dynamic turntable drives from DAMBACH are interlocking units and ensure precise rotational angles of up to 270° with any number of intermediate stops. For optimum occupational safety, our turntables can be fully enclosed. In addition, the innovative modular design guarantees numerous and diverse applications and ease of servicing at the same time.

  • Designed for high throughputs
  • Max. 1,500 kg per storage position
  • Long-lasting, many parts with high-quality galvanised finish
  • Simple maintenance with many identical parts
  • Decentralised control concept via data and power bus
  • Frequency-controlled drives for soft starting
  • Logic elements and frequency controllers integrated into drives
